En 818-2 Grade 100 Chain

General Description

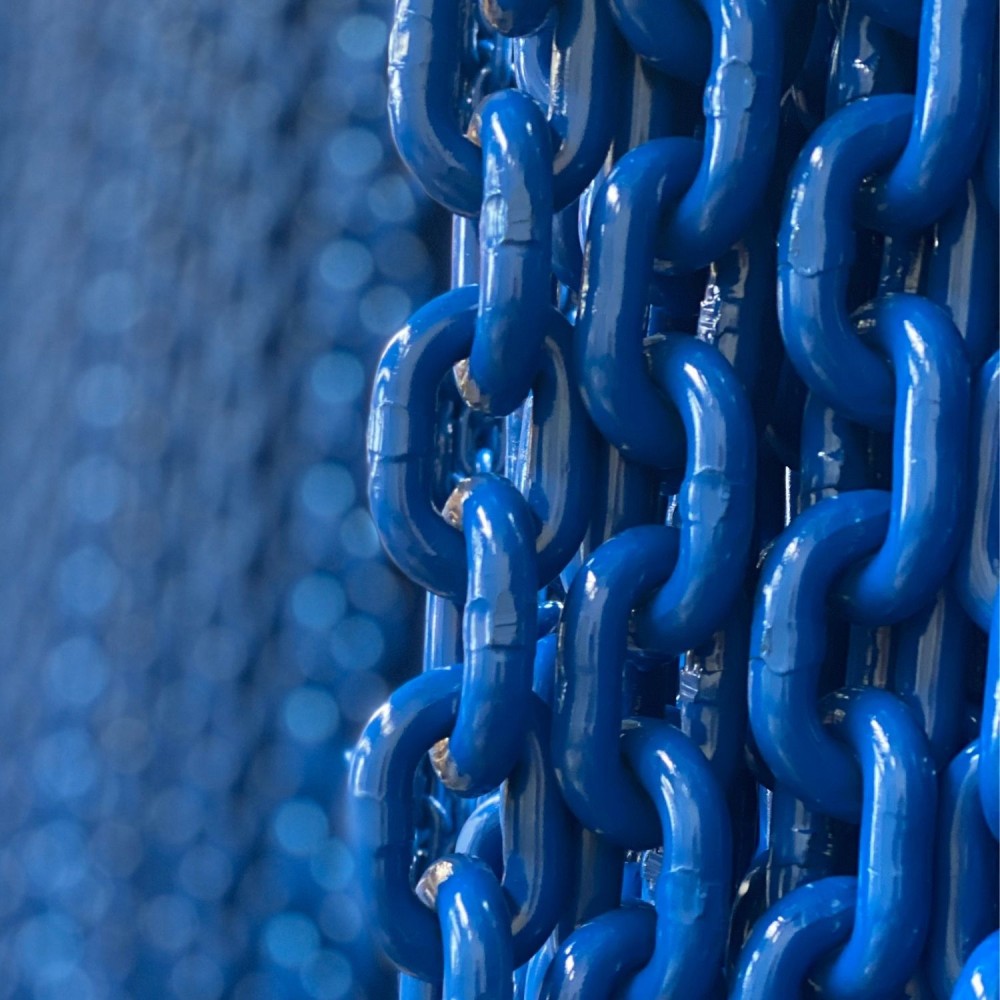

Zintaş Grade 100 Chain: A Solution Combining Strength and Safety

Zintaş is a brand known for delivering excellent performance and safety in lifting applications. Grade 100 chains, produced with high-alloy steel and advanced heat treatment processes, stand out in heavy lifting operations.

  • High Strength and Safety: The Grade 100 series from Zintaş Chain meets safety standards with superior tensile strength compared to ordinary steel chains.
  • Durability and Longevity: Advanced heat treatment processes enhance the durability and longevity of Zintaş Chain.
  • Versatile Applications: Suitable for various sectors including construction, transportation, mining, and industrial lifting.
  • Safety and Quality Standards: Zintaş Chain offers a reliable and high-quality product with full compliance with international safety standards. Each link provided to customers has undergone all quality and testing processes.

Technical Description

Nominal Diameter and Tolerace  Internal Length and Tolerace Internal Width External Width Weight Working Load Test Load Breaking Load

d  t  bi  ba  Kg/m kN Max.  kN Max.  kN Min.
6 ±0,24 18 ±0,5 7,8 22,2 0,8 1400 35,3 56,5
7 ±0,28 21 ±0,6 9,1 25,9 1,1 1900 48,1 77
8 ±0,32 24 ±0,7 10,4 29,6 1,4 2500 62,8 101
10 ±0,4 30 ±0,9 13 37 2,2 4000 98,2 157
13 ±0,52 39 ±1,2 16,9 48,1 3,8 6700 166 265
16 ±0,64 48 ±1,4 20,8 59,2 5,7 10000 251 402
18 ±0,9 54 ±1,6 23,4 66,6 7,3 12500 318 509
19 ±1,0 57 ±1,7 24,7 70,3 8,1 14000 354 567
20 ±1,0 60 ±1,8 26 74 9 16000 393 628
22 ±1,1 66 ±2,0 28,6 81,4 10,9 19000 475 760
23 ±1,2 69 ±2,1 29,9 85,1 12 20000 519 831
26 ±1,3 78 ±2,3 33,8 96,2 15,2 26500 664 1060
